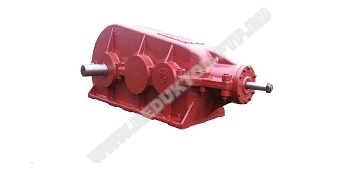

Редуктор КЦ2-1300
 МЕНЮ

Редуктор КЦ2-1300

Оставить заявку

Основные технические данные редуктора КЦ2-1300

Типоразмер редуктора КЦ2-1300
Номинальное передаточное отношение, i 28 45 71 112 180
Номинальный крутящий момент на тихоходном валу, Т, Н×м в зависимости от номинальной частоты вращения быстроходного вала, с-1 (об/мин) 10 (600) 28000 38700 38700 37500
16,6 (750) 25800
25 (1500) 24300 37500 37500
Номинальная радиальная консольная нагрузка, приложенная в середине посадочной поверхности выходного конца вала, Н быстроходного 8000 12200 14500 16000
тихоходного 73000 77500 92500
Масса, кг, не более 5110

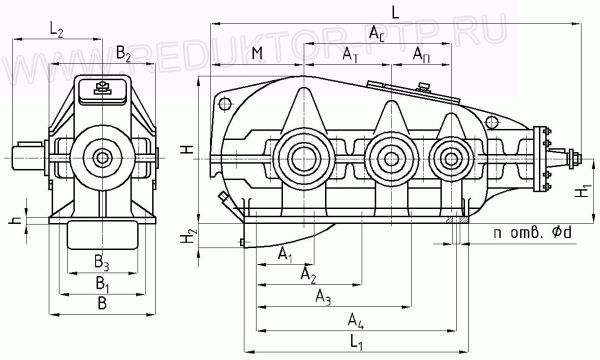

Габаритные размеры редуктора КЦ2-1300

Типоразмер редуктора АC АП АT A1 A2 A3 A4 B В1 В2 В3 H Н1 Н2 h L L1 L2 М d n Масса
мм шт кг
КЦ2-1300 1300 500 800 700 1100 1560 2020 850 740 850 610 1282 530 240 50 3168 2200 790 820 39 10 5000

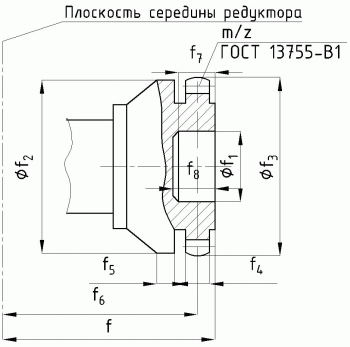

Размеры конца тихоходного вала редуктора КЦ2-1300 в виде зубчатой полумуфты

m z D1 d5 d6 b3 l4 l5 l6 l7 l8
6 56 348 360 215 40 560 605 85 130 30

Варианты сборки редуктора КЦ2-1300
